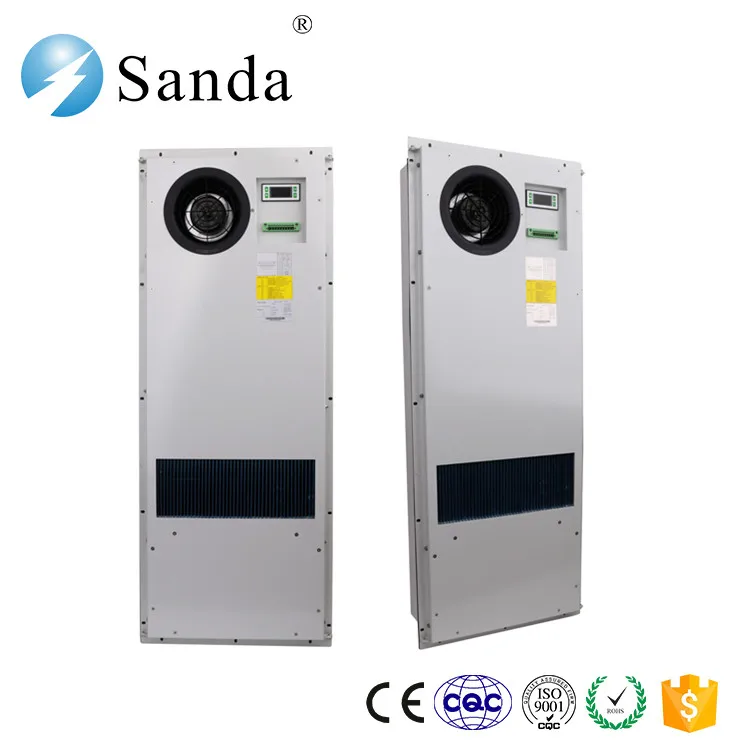

DC48V 80W/K outdoor telecom cabinet heat exchanger

The heat exchanger integrated by heat exchanging system and intelligent monitoring system. It can eliminate heat passively through the automatically started heat exchanging system with changing of temperature inside if the equipment, thus temperature inside the equipment can be controlled within the range pre-set.

Technical Data

 Technical  parameters of DC48V 80W/K outdoor telecom cabinet heat exchanger

Product mode	SDHE-080EA  ( cabinet heat exchanger )	Unit
Dimensions	904x404x146(HxWxD)	mm
Weight	18	kg
Mounting method	Embedded
Working temperature	-40-65	℃
Input voltage	DC 48V±20%   50/60Hz
Cooling capacity	80	W/k
Heating (optional)	1000	W
Fan powerconsumption	68	W
Internal Airflow	450	m3/h
IP grade	IP 55
Refrigerant	R134A
Noise	50~65	dB (A)
Surface treatment	RAL7035

Product Features of DC48V 80W/K outdoor telecom cabinet heat exchanger

* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;

* Strict process control and famous brand components to ensure high quality and reliability of this product;

* Multiple self protection design & Interchangeable monitoring software interface, RS485/RS422 communication  throught MODBUS  protocol;

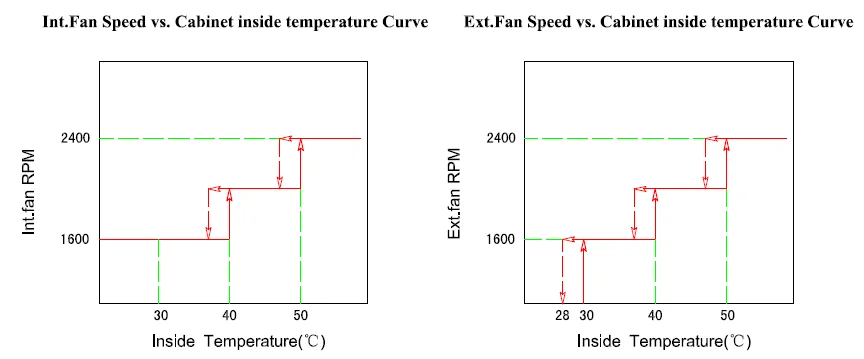

* Circulation fans step speed regulation function;

* LED display, all the settings can changed at the field;

* The heating function is optional;

* Dry contact alarm output, NO/NC optional;

* Absolute moisture control function is optional ;

* 4-20mA temperature  and humidity signal output by the way of current,   this fuction is optional.

Installation

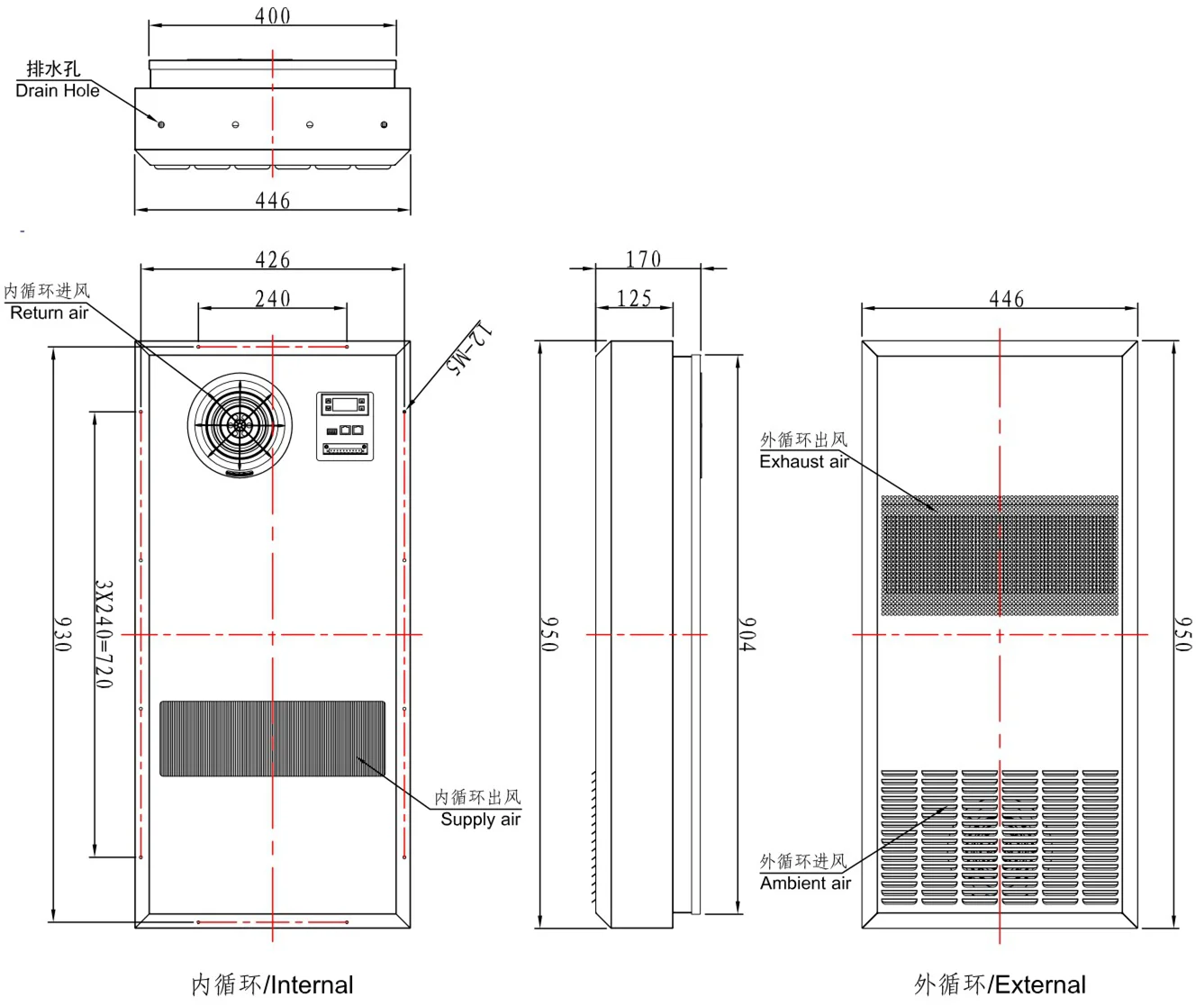

Telecom cabinet heat exchanger 80W/K installation size

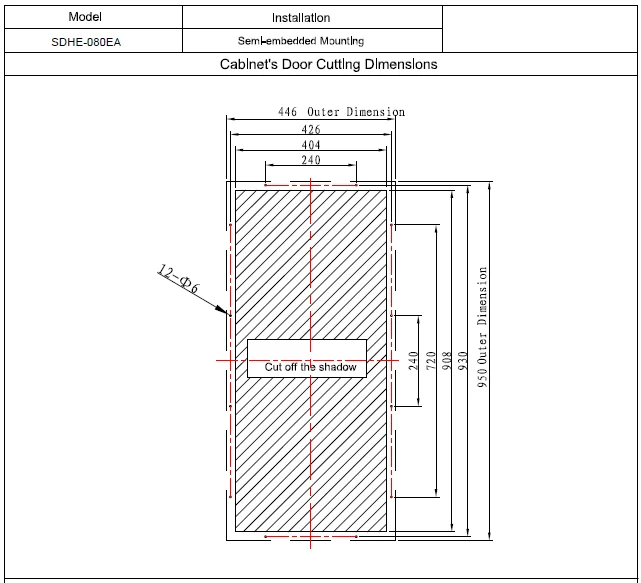

 Cabinet's door cutting dimension;

Application

 Application Fields of heat exchanger

Heat exchanger can be widely used in enclosed area for climate control, such as wireless communication  cabinet, industry control cabinet, electric cabinet, telecom cabinet etc;
